What is a Flotation Machine?

A flotation machine is a device that utilizes chemical differences in mineral surfaces to separate valuable minerals from waste. Its key roles are to concentrate low grade ore into a high grade concentrate, to separate a wide range of valuable minerals, and to remove impurities.

The main jobs of a flotation machine are:

1. Concentration: Taking ore with maybe 1% valuable mineral and upgrading it to a concentrate with 20%, 30%, or even higher grade.
2. Separation: Handling complex ores containing multiple valuable minerals (like copper, lead, and zinc together) and selectively floating each one into its own separate concentrate.
3. Purification: Removing unwanted or harmful impurities from a concentrate.

Flotation Machine Introduction

A Flotation Machine (or Flotation Cell) is a device that separates minerals based on their hydrophobicity (affinity for water) rather than their density.

The process sounds almost magical. You grind rock into a powder and mix it with water and chemicals. Then, you blow air into the bottom. Suddenly, the heavy metallic minerals attach to index bubbles and float to the top like froth on a cappuccino, while the “light” useless sand sinks to the bottom.

• The Reality:A Flotation Machine is meant to facilitate this interaction. It must keep the slurry in constant suspension. It must disperse air into tiny bubbles. It must create a calm zone at the top for the froth to accumulate.
• The Evolution:From the older Flotation Machine models to the modern series, ZONEDING has evolved these machines to consume less power while creating finer, more uniform bubbles. They are the backbone of any sulfide ore concentration plant.

What are Benefits of Using Flotation Machine?

Why do mining companies rely on this complex chemical process instead of simple gravity chutes?

• 1. Ability to Process Low-Grade Ore:We are running out of high-grade nuggets. Most modern gold and copper are microscopic particles locked inside waste rock. Gravity separators cannot catch these. The Flotation Cell can recover minerals down to 0.01mm sizes effectively. It turns “dirt” into valuable concentrate.
• 2. High Selectivity:Gravity separates “Heavy” from “Light.” Flotation separates “Chemical A” from “Chemical B.”
• 3. High Throughput:Flotation cells are modular. You can connect them in a series of 10, 20, or 50 cells. This allows for massive processing capacities involving thousands of tons per day, which is essential for large open-pit copper mines.
• 4. Comprehensive Recovery:By using the correct reagents, recycling the middlings (middle-grade material) back to the head of the circuit is easy. This “Closed Circuit” operation ensures that very little valuable metal escapes to the tailings dam.

Which Industries and Minerals Rely Heavily on Flotation Machines?

Flotation is essential in mineral processing for base metals (copper, lead, zinc, nickel), precious metals (gold, silver, platinum), iron ore upgrading, industrial minerals (phosphate, potash, fluorspar), coal cleaning, and even wastewater treatment.

Core Applications in Mineral Processing

• Base Metals (Non-Ferrous): This is flotation’s heartland. It’s the primary method for concentrating sulfide ores of copper, lead, zinc, nickel, cobalt, molybdenum, antimony, tin, tungsten. It’s also adapted for some oxide ores of these metals.
• Iron Ore: Used in reverse flotation to remove silica impurities from iron concentrates, or sometimes direct flotation to recover fine iron minerals.
• Precious Metals: Gold, silver, and platinum group metals are often recovered by floating the sulfide minerals they are associated with. Dedicated flotation circuits for precious metals also exist.
• Industrial Minerals: Critical for concentrating phosphate rock, potash salts, fluorspar, barite, talc, graphite, and cleaning coal (removing sulfur and ash).
• Rare Metals & Rare Earth Elements: Used in concentrating certain ores containing these valuable elements.

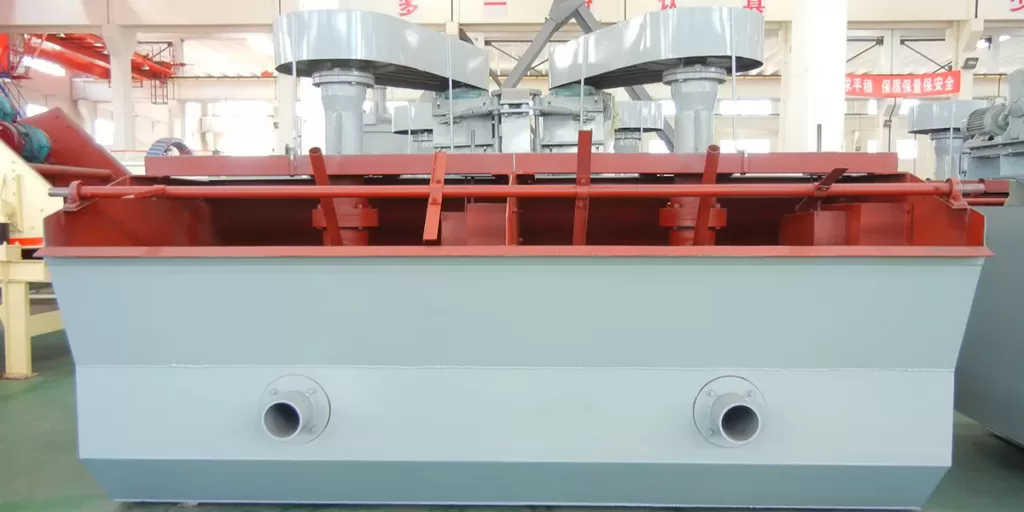

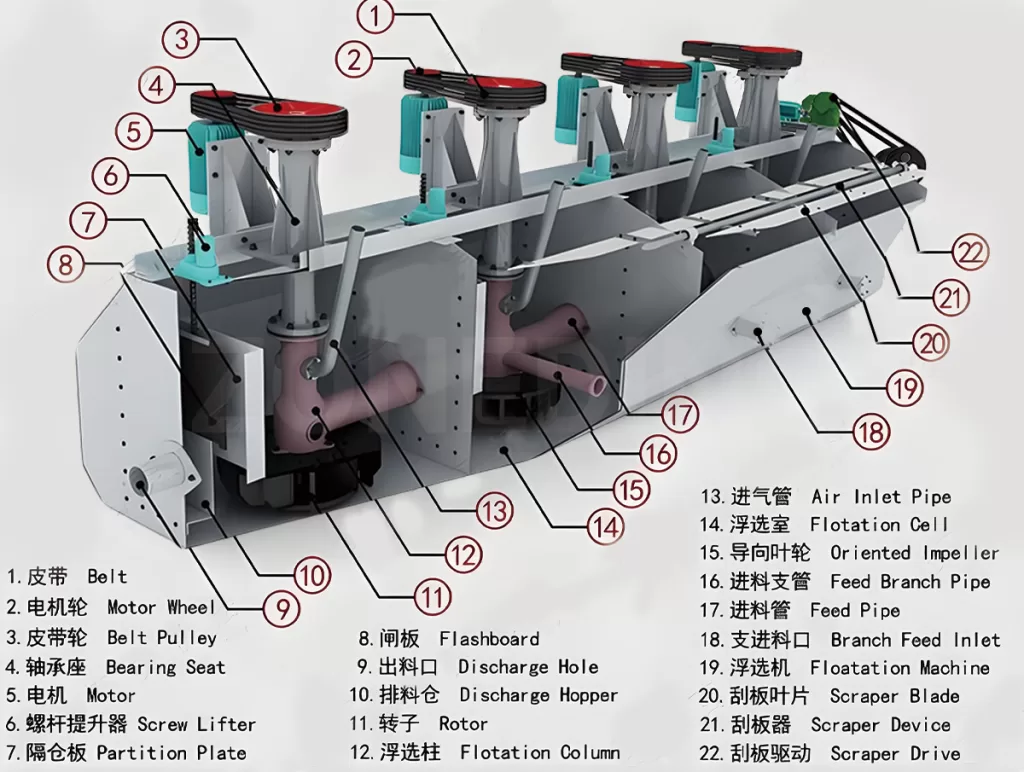

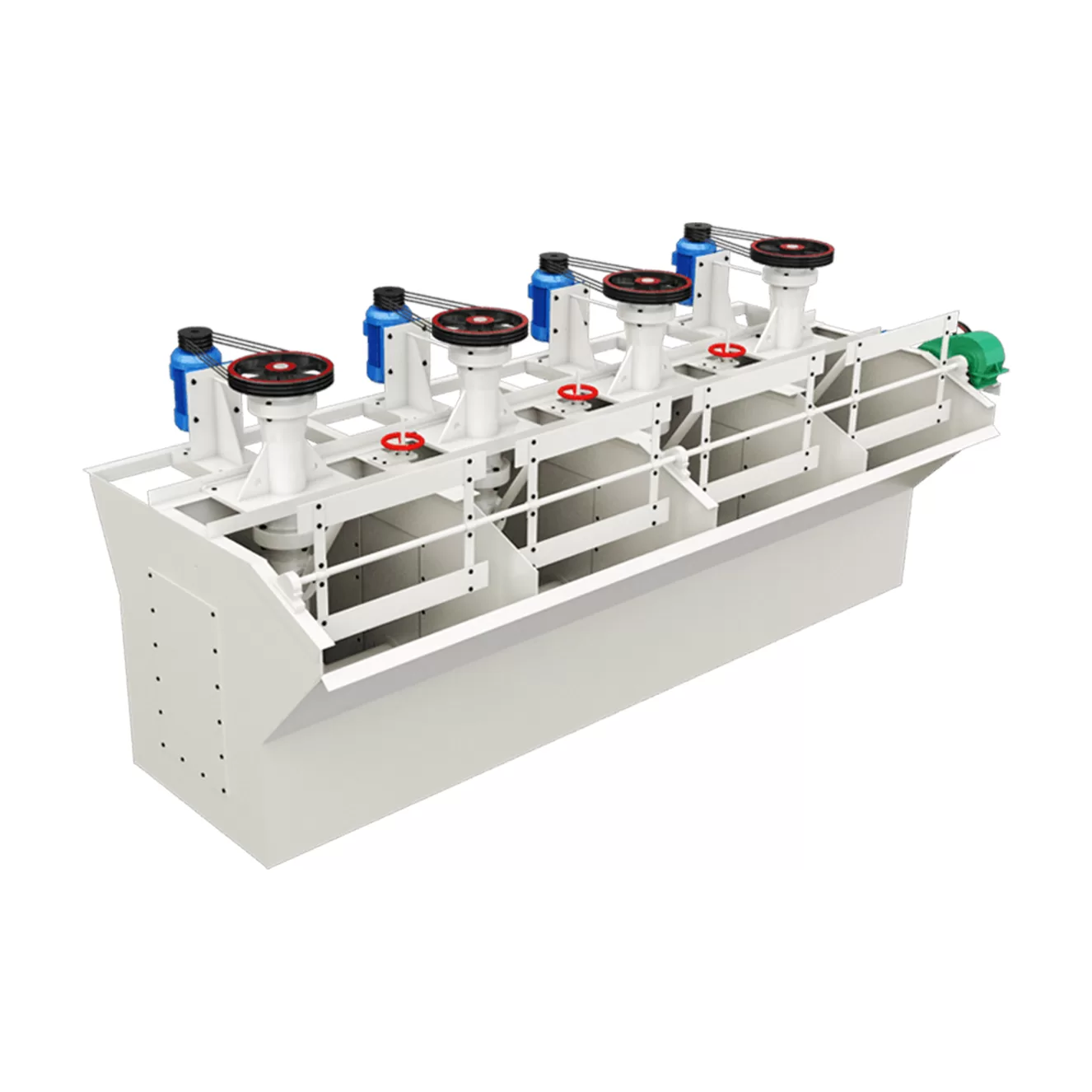

Flotation machine structure

A standard mechanical agitation flotation machine consists of several specific systems working in unison.

• 1. The Tank (Cell):Usually made of welded steel plate. ZONEDING designs often feature a U-shaped tank. This shape reduces “dead corners” where sand could settle and build up, ensuring all material stays in suspension.
• 2. The Impeller and Stator (The Heart):A motor drives a vertical shaft. At the bottom is the Impeller (mixes slurry) and the Stator (stabilizes flow).Function: The impeller acts like a centrifugal pump. It throws slurry outward, creating a vacuum that sucks air down the shaft (in self-aspirating models).
• 3. The Air Intake System:Self-Aspirating (SF/JJF): The machine sucks its own air naturally.Forced Air (KYF/XCF): A separate air blower pushes air into the tank. This provides more control but requires more equipment.
• 4. The Froth Scraper:At the top of the tank, rotating paddles (scrapers) gently skim the mineral-laden froth over the lip of the tank into the concentrate launder.

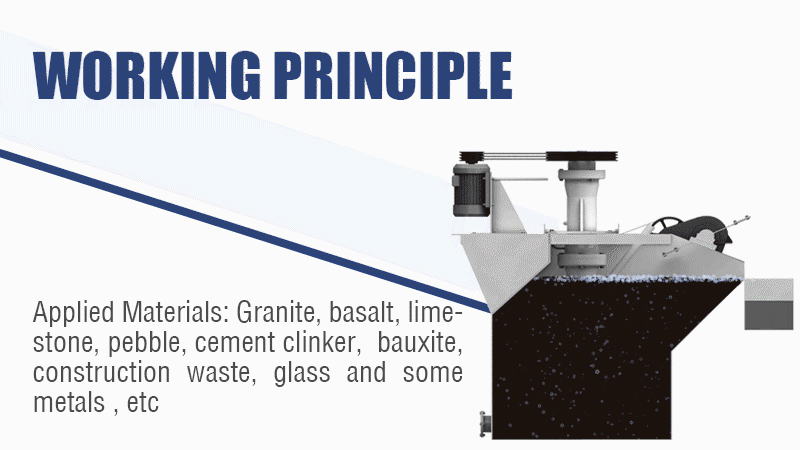

Principle of Flotation Machine

How Does the Flotation Machine Work?

The operation is a balance of hydrodynamics and surface chemistry.

• Step 1: Pulping and Conditioning
  • Before entering the machine, the ground ore is mixed with water and chemicals in an Agitator Tank.
  • Collector: Coats the valuable mineral to make it water-repellent (Hydrophobic).
  • Frother: Increases the strength of the bubbles so they don’t burst instantly.
• Step 2: Aeration and Agitation
  • The slurry enters the flotation cell. The impeller spins. It mixes the slurry and shears the air into millions of tiny bubbles.
• Step 3: Mineralization
  • The hydrophobic mineral particles collide with the air bubbles. Because they repel water, they prefer to stick to the air bubble.
• Step 4: Separation
  • The bubbles, now armored with mineral particles, rise to the surface to form a stable froth layer. The waste rock (hydrophilic) stays in the water and flows to the next cell or discharge.
• Step 5: Collection
  • The scraper removes the mineralized froth. This is the “Concentrate.”

What Should I Consider Before Buying the Flotation Machine?

Not all flotation cells are created equal. Selection depends on the scale and the ore.

• 1. Self-Aspirating vs. External Air:
  • Small/Medium Plants: Choose SF Series (Self-aspirating). They are simpler. You don’t need to buy expensive air blowers and complex piping.
  • Large Plants: Choose KYF/XCF Series (Air-inflation). They consume less power per cell and allow independent control of air volume, which is critical for massive tanks.
• 2. Tank Volume and Retention Time:
  • The ore needs time to float. This is called “Retention Time” (typically 10-20 minutes).
  • Calculation:* If you process 50 tons per hour, and you need 15 minutes of flotation, you need a total tank volume calculation provided by ZONEDING engineers. Do not undersize the cells, or you will lose gold to the tailings.
• 3. Corrosiveness and Abrasion:
  • Is the pulp acidic? Is the rock sharp? The impeller material and tank lining must be chosen accordingly (e.g., Natural Rubber vs. Polyurethane).

Mechanical Agitation vs. Air-Inflation Cells: Which Design Do You Need?

This is the most common technical question ZONEDING receives.

• Mechanical Agitation:
  • How it works: The impeller does everything: mixing the slurry, sucking the air, and dispersing the bubbles.
  • Pros: Self-contained. No external blower needed. Good for coarser particles because the agitation is strong.
  • Cons: Higher wear on the impeller; slightly higher power consumption.
• Air-Inflation / Pneumatic:
  • How it works: The impeller only mixes the slurry. A separate blower forces air in.
  • Pros: The impeller spins slower, so wear is reduced. More energy efficient. Allows better control of bubble size.
  • Cons: Requires a blower system. Generally used for “Roughing” and “Scavenging” in large concentrators.

Often, a combination is best. Use Mechanical Cells for the “Suction Cell” (the first cell that sucks slurry in) and Air-Inflation Cells for the rest of the flow to save power.

How to Optimize Reagent Dosage for Maximum Efficiency?

The machine is the hardware; the reagent is the software. The machine cannot float rock without the chemistry.

• 1. Don’t Overdose:
  • Adding too much “Collector” reagent doesn’t catch more gold; it starts catching waste rock too. This lowers the grade of your concentrate.
  • Adding too much “Frother” creates a voluminous, watery froth that is unmanageable and spills over the floor.
• 2. Stage Addition:
  • Do not dump all chemicals in at the start.
  • Add 70% in the conditioning tank.
  • Add 30% halfway down the bank of flotation cells.
    This “Stage Addition” ensures that fresh bubbles are available for minerals that are slow to float.
• 3. pH Control:
  • Most flotation works best in an alkaline environment (pH 9-11). Lime is added to control this. If the pH drops, pyrite (waste iron sulfide) might start floating and contaminate your copper concentrate.

Can Flotation Machines Effectively Recover Fine Particle Gold?

Yes, but with clarifications.

The “Invisible” Gold:
Flotation is NOT for nuggets. Nuggets are too heavy; they will fall off the bubble. Flotation is for “Microscopic Gold” or gold trapped inside sulfide minerals.

The Particle Size Window:
Flotation works best between 0.01mm and 0.15mm.

• Too Coarse (>0.2mm): Gravity pulls the particle off the bubble. (Use a Jig or Centrifuge instead).
• Too Fine (<0.01mm): The particle is too small to collide with a bubble efficiently. (Requires specialized Micro-bubble flotation).

Conclusion: ZONEDING Flotation cells are the standard solution for recovering gold from tailings of other processes or specifically for sulfide-gold ore bodies.

Direct Flotation vs. Reverse Flotation: What is the Difference?

Two strategies exist depending on the mineral value ratio.

1. Direct Flotation (Standard):

• Goal: Float the Valuable Mineral.
• Process: The froth is the product. The stuff remaining in the tank is waste.
• Use Case: Copper, Gold, Lead, Zinc. (Because the metal is a small % of the total rock).

2. Reverse Flotation:

• Goal: Float the Waste (Gangue).
• Process: The froth is the waste. The stuff remaining in the tank is the product.
• Use Case: Iron Ore and Phosphate.
  • Why? In Iron ore, the iron is 40-50% of the rock. It is easier to float the small amount of Silica (sand) away from the heavy Iron than to try to lift tons of heavy iron on bubbles.

Wear Parts Maintenance: How to Extend the Life of Impellers and Stators?

The impeller spins at high speed in a slurry that acts like liquid sandpaper. Wear is inevitable.

1. Material Selection:
ZONEDING offers impellers in Cast Iron and Rubber-Lined.

• While Cast Iron is cheaper, Rubber lasts 2-3 times longer and is generally preferred for standard flotation.

2. Clearance Adjustment:
The gap between the Impeller and the Stator is critical. As they wear, the gap widens.

• Effect: A wide gap reduces the suction power and air dispersion. The cell looks “dead.”
• Maintenance: Regularly inspect the gap. Shim or lower the impeller assembly to maintain the tight tolerance specified in the ZONEDING manual.

3. Keep Air Holes Clear:
In SF machines, the air pipe can get clogged with dried slurry during shutdowns. Ensure air passages are cleaned during maintenance days to prevent uneven bubbling.

Why Choose ZONEDING’s Flotation Cells for Your Sulfide Ore Plant?

ZONEDING brings 30 years of manufacturing experience to the flotation circuit.

1. Optimized Fluid Dynamics:
Our SF and XJK Series utilize a modernized impeller design with backward-raked blades. This provides a stronger circulation path for the slurry, ensuring that heavy minerals act as if they are light, staying in suspension longer for better recovery rates.

2. Low Energy Consumption:
By optimizing the stator design, we have reduced the turbulence in the lower zone of the tank. This reduces the motor load, saving 15-25% energy compared to older generation cells.

3. Complete Systems:
We don’t just sell the tank. We provide the full package: The Chemical Agitation Tank, the Reagent Feeders, and the connecting slurry pumps, ensuring the entire chemical circuit is synchronized.

Flotation machine type

There are three main types of ZONEDING flotation equipment, namely mechanical agitation flotation machines (BF, JJF type), inflatable agitation flotation machines (XCF type, KYF type) and inflatable flotation machines (XJB rod flotation machine).

Flotation Machine Size

Category	Specification  Model	Effective  cubage （m³）	Processing  capacity （m³/min）	Main shaft     loam board				Dimensions (L×W×H) （m）	Single  trough  Weight （t）
				Power（kw）	Rotate Speed（r/min）	Rotate Speed(r/min）	Power（kw）
XJK type flotation machine	XJK-0.35	0.35	0.18-0.4	1.5	483	25	1.1	0.7×0.7×0.7	0.5
	XJK-0.62	0.62	0.3-0.9	3.0	400	25	1.1	0.90×0.82×0.85	1.0
	XJK-1.1	1.1	0.6-1.6	5.5	330	25	1.1	1.1×1.1×1	1.4
	XJK-2.8	2.8	1.5-3.5	11	280	25	1.1	1.75×1.6×1.1	2.5
	XJK-5.8	5.8	5-7	22	240	25	1.5	2.2×2.2×1.2	3.6
SF type flotation machine	SF-0.37	0.37	0.2-0.4	1.5	386	25	1.1	0.7×0.7×0.75	0.5
	SF-0.7	0.7	0.3-0.9	3	400	25	1.1	0.9×0.82×0.95	1.0
	SF-1.2	1.2	0.6-1.6	5.5	330	25	1.1	1.1×1.1×1.1	1.9
	SF-2.8	2.8	1.5-3.5	11	268	25	1.1	1.75×1.6×1.15	2.6
	SF-4	4	2-4	15	220	25	1.5	1.85×2.05×1.2	2.9
	SF-8	8	4-8	30	191	25	1.5	2.2×2.9×1.4	4.2
	SF-10	10	5-10	30	191	25	1.5	2.2×2.9×1.7	4.5
	SF-20	20	5-20	30×2	191	25	1.5	2.85×3.8×2	9.9
JJF type flotation machine	JJF-2	2	1-3	7.5	443	25	1.5	1.4×1.4×1.1	1.7
	JJF-4	4	2-4	11	305	25	1.5	1.6×2.15×1.25	2.4
	JJF-8	8	4-8	22	233	25	1.5	2.2×2.9×1.4	4.5
	JJF-10	10	5-10	22	233	25	1.5	2.2×2.9×1.7	4.9
	JJF-16	16	5-16	30	180	25	1.5	2.85×3.8×1.7	8.0
	JJF-20	20	5-20	37	180	25	1.5	2.9×3.8×2.0	10.5

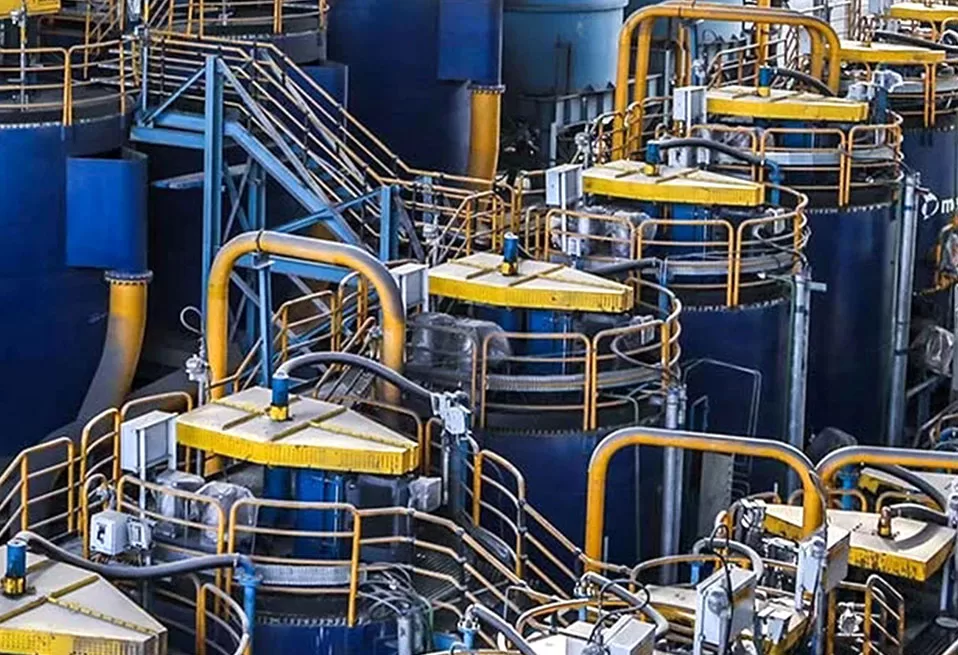

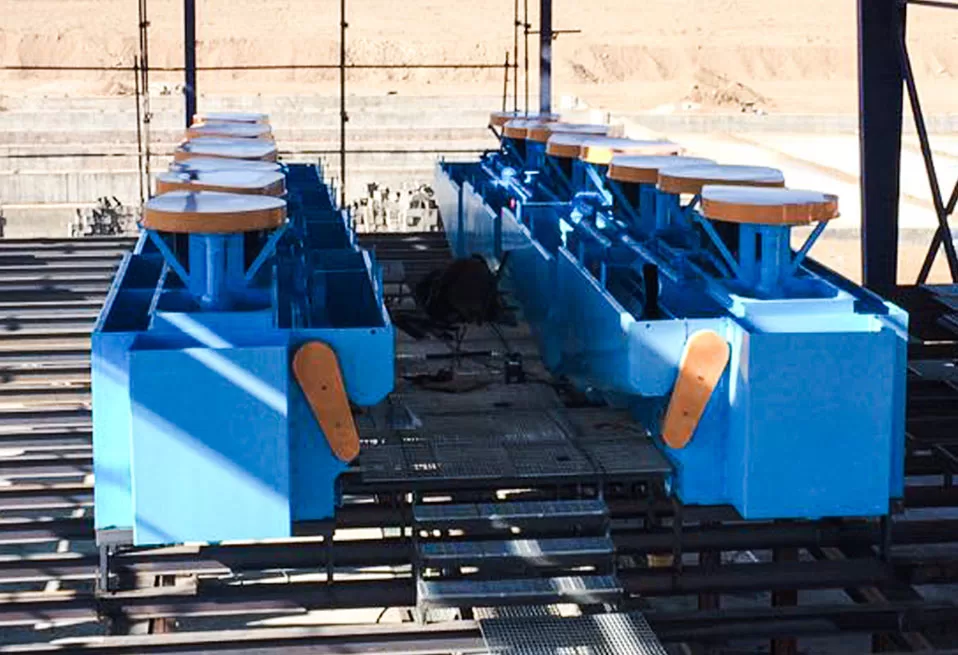

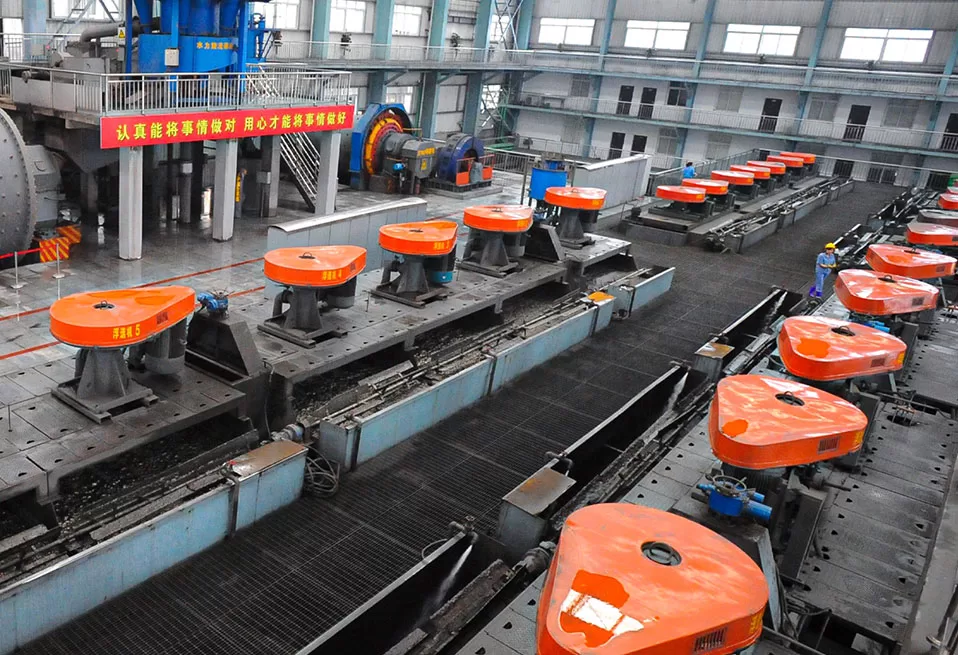

Flotation machine case
